24 SQM · SLEEPS 2-4 · SINGLE LOFT

The Iron
Bark.

A masterclass in spatial efficiency, utilising vertical volume and raw, tactile materials to create a sanctuary that feels vast despite its modest footprint.

Sun drenched cosy loft with high ceiling living, and a kitchen that cooks like a full size home. Clever built-in storage everywhere, no clutter, only calm.

Move-in ready, eco-smart, and utterly irresistible.

TURN KEY STARTING FROM$135,000 AUD
MAKE IT XL WITH AN EXTRA BED LOFT$144,000 AUD

TECHNICAL SPECS

01 // DIMENSIONS
  • Footprint 7.3m x 2.5m
  • Height 4.3m
  • Internal Area 24 SQM
02 // TRAILER
  • Tri axle trailer galvanised 4.5T
  • VIN plate
  • Electric brakes
  • Brake away system
  • 5 adjustable legs
  • Removable drawbar (optional)
03 // MATERIALS

Flooring
Blue tongue & FC board in bathroom · Premium engineered European oak · Lux vinyl plank in bathroom · Cork (optional)

Structural
Light steel Truecore

Roofing
Colorbond Trimdek & thermal break Ametalin

Cladding
Nail strip weathered iron* & natural brushed thermo spruce** · Shou sugi ban (optional) · HQ vapour membrane

Internal
Plywood 3 coated finish · Premium birch plywood (optional) · VJ board plywood BB grade 3 coated finish

Insulation
90mm Sound Shield R 2.7 wall & ceiling · 50mm green board R 1.5 floor

Windows
Low-E glazing

04 // FIXTURE & APPLIANCES

Kitchen
Custom cabinet with plenty of storage · Large sink stainless steel & kitchen tap matt black · 4 burners cooktop Haier · Built-in oven Haier · Range hood · Dishwasher (optional)

Bathroom
Vanity / basin stand mount & mixer chrome · Space for wash/dryer machine · Mirror storage cab · Shower 820×820mm concrete look finish · Large shower head & mixer matt black · Close coupled toilet

Bedroom
Custom wardrobe

Staircase
Storage built-in stairs

05 // ELECTRICAL
  • External lights
  • Dim internal down spots
  • LED kitchen
  • Smoke alarm
  • Daikin air conditioning 2.5kW split system
  • Ready to plug in 32 amp outlet
06 // OFF GRID OPTIONS
  • Gas water heater (included)
  • Composting toilet
  • Solar panels & batteries
  • Water tank
  • Greywater system
  • Water filtration

* Nail strip weathered iron offers a modern, durable and low maintenance solution that blends perfectly with the spruce and gives this industrial touch with its unprecedented rusty look.

** Thermally modified spruce wood cladding (141×19). It features a natural brushed colour, rustic texture that mimics aged, reclaimed wood. It is highly durable, stable, and resistant to decay. Can be oiled for extra protection.

NOTE: All materials colour can be customised.

Considered
Details.

Every junction, texture, and light source is intentionally designed to ground you in the present moment.

The Living Volume

By recessing the functional elements into the perimeter walls, the central living space remains entirely unobstructed, allowing for flexible furniture arrangements and unhindered cross-ventilation.

PLAN

Plan

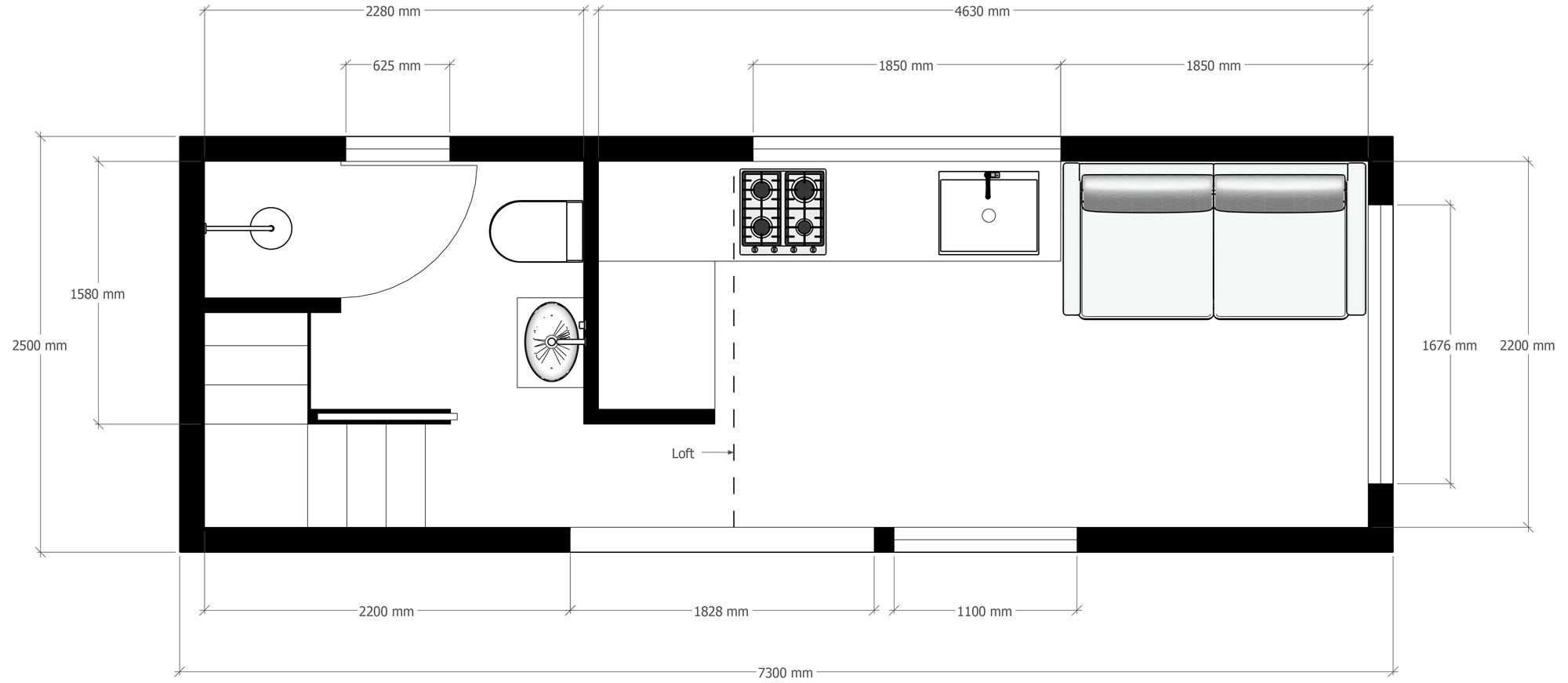

Floor plan

Iron Bark floor plan

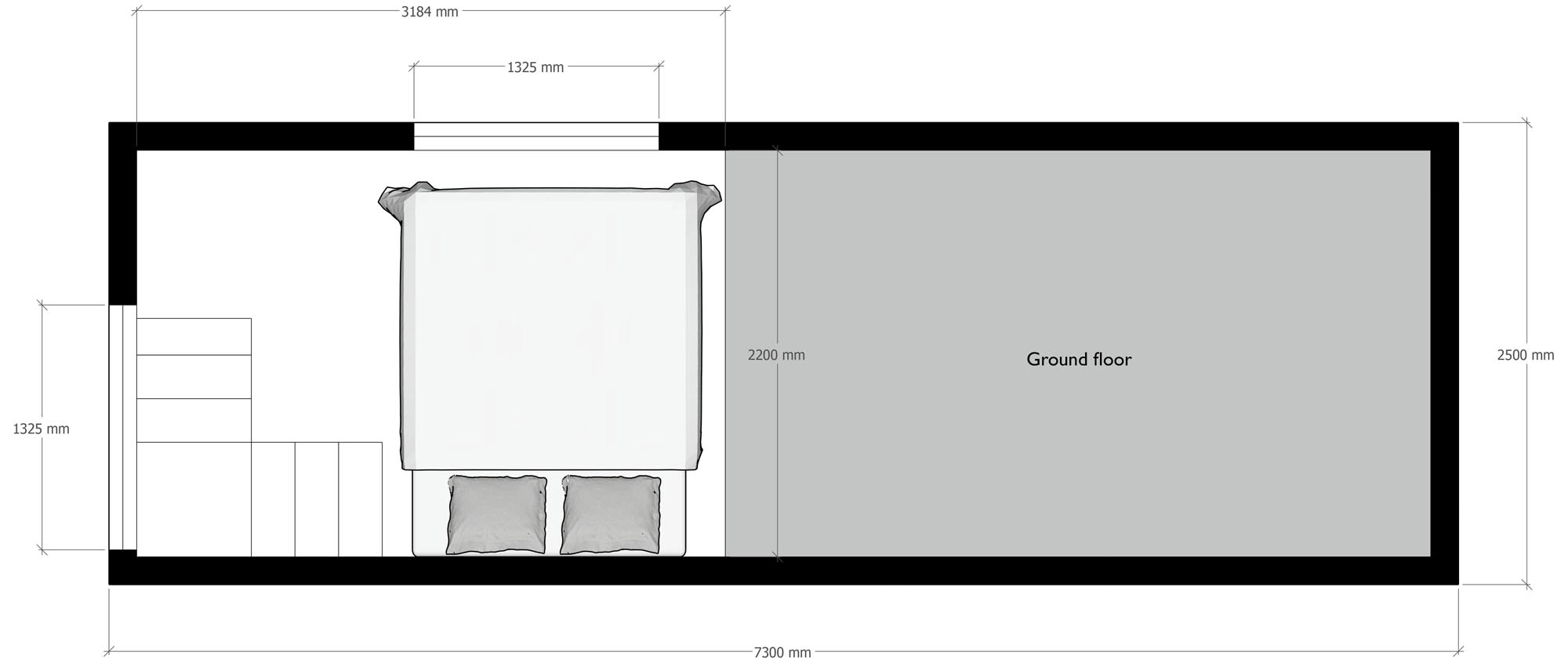

Loft plan

Iron Bark loft plan
NEXT STEPS

Commission
an Iron Bark.

Each edition is built to order in our Byron workshop. Submit an inquiry to receive a detailed breakdown of options, site preparation requirements, and current lead times.
